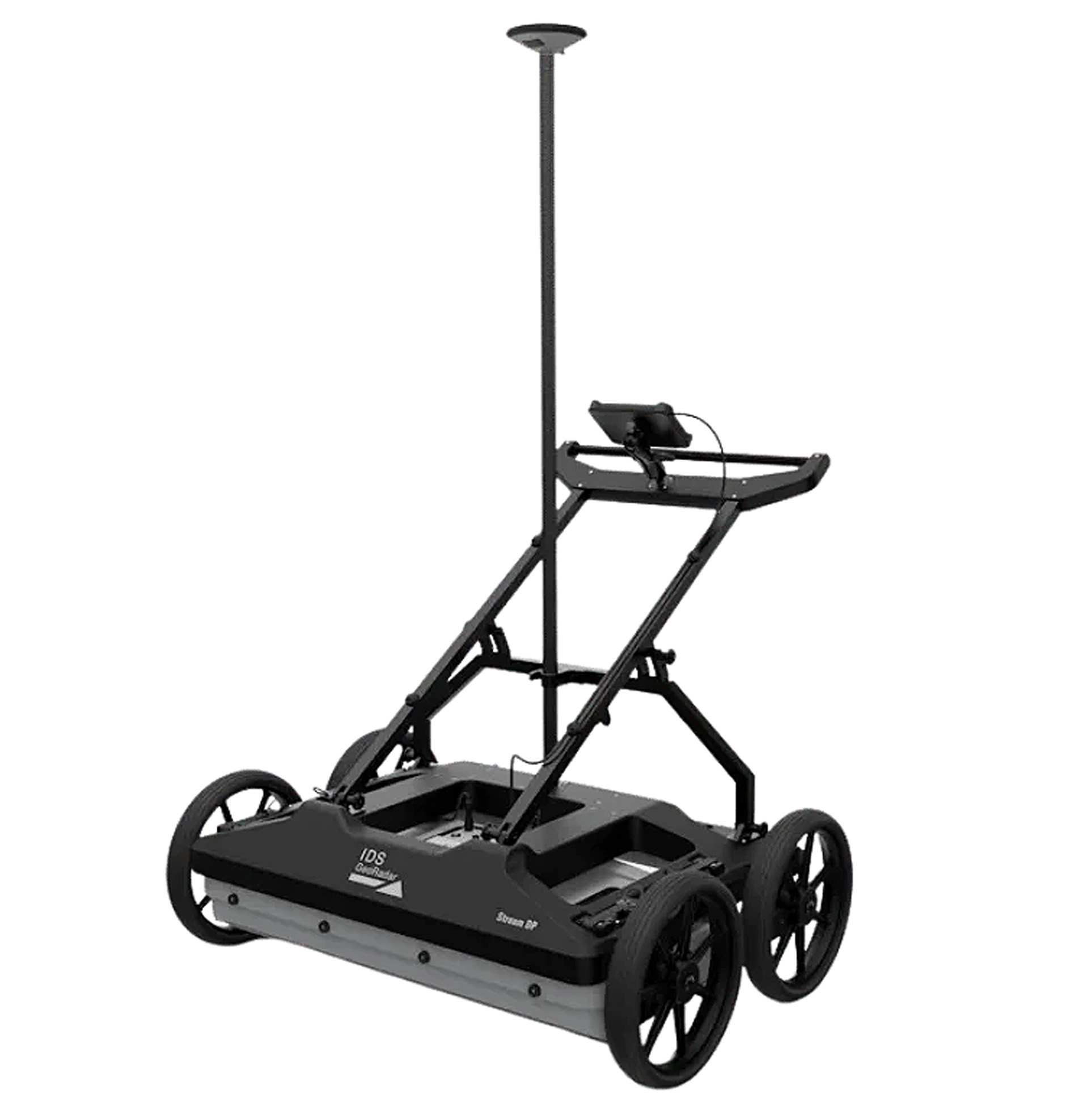

Stream DP
The Stream DP by IDS GeoRadar is an advanced multi-channel Ground-Penetrating Radar (GPR) array system designed for real-time 3D mapping of underground utilities and subsurface features.
Key Features and Technology
- Equalized Scrambled Technology (EsT): Uses advanced signal processing to maximize detection depth and resolution while reducing noise.
- Massive Antenna Array: Features 30 channels in dual polarization (19VV + 11HH) to reconstruct underground networks accurately in a single scan.
- Positioning Integration: Combines an integrated encoder, Pulse-per-Second (PPS) synchronization, and support for external GPS or TPS.
- Software Ecosystem: Uses uMap for on-field radar data collection and IQMaps for cloud-integrated post-processing.
Design and Portability
- Lightweight Build: Weighs a maximum of 20 kg per part, allowing a single operator to assemble and deploy it in under five minutes.
- Compact Size: Measures 116 cm x 82 cm to fit easily inside a standard vehicle.
- Terrain Versatility: Offers modular wheel configurations easily swappable between smooth asphalt and uneven, rugged terrain.
- Power Efficiency: Consumes low power (15W–19W) and supports hot-swap battery technology for continuous, uninterrupted field operations.
