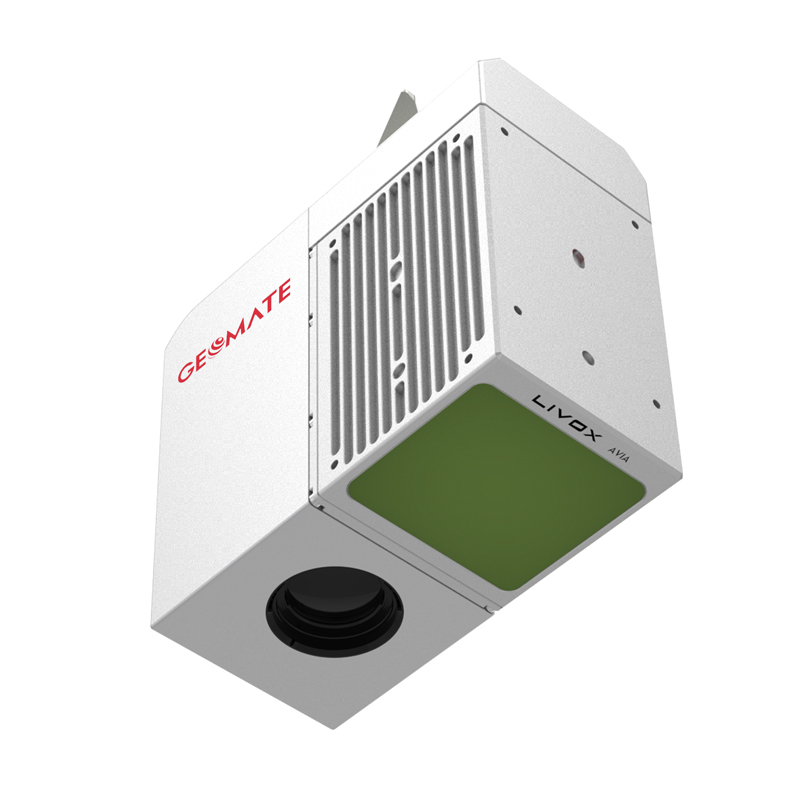

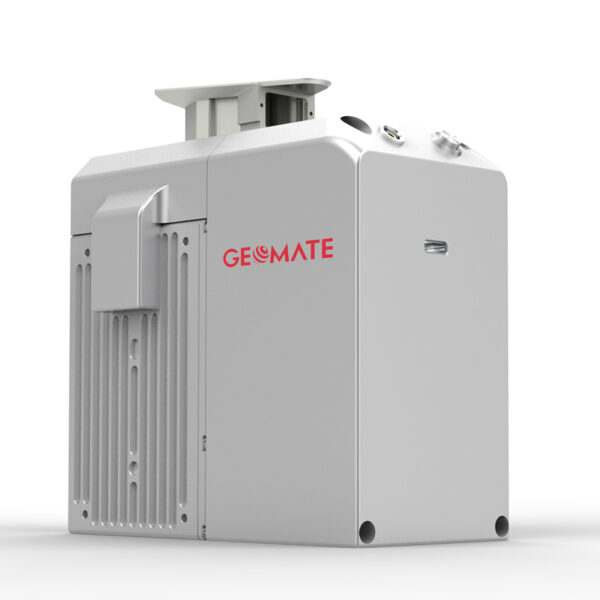

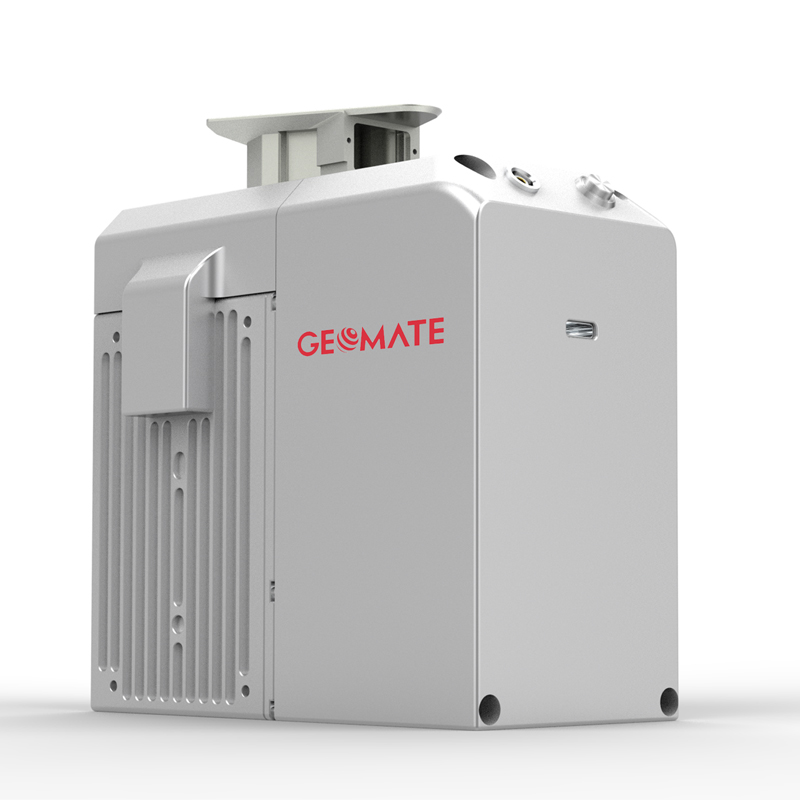

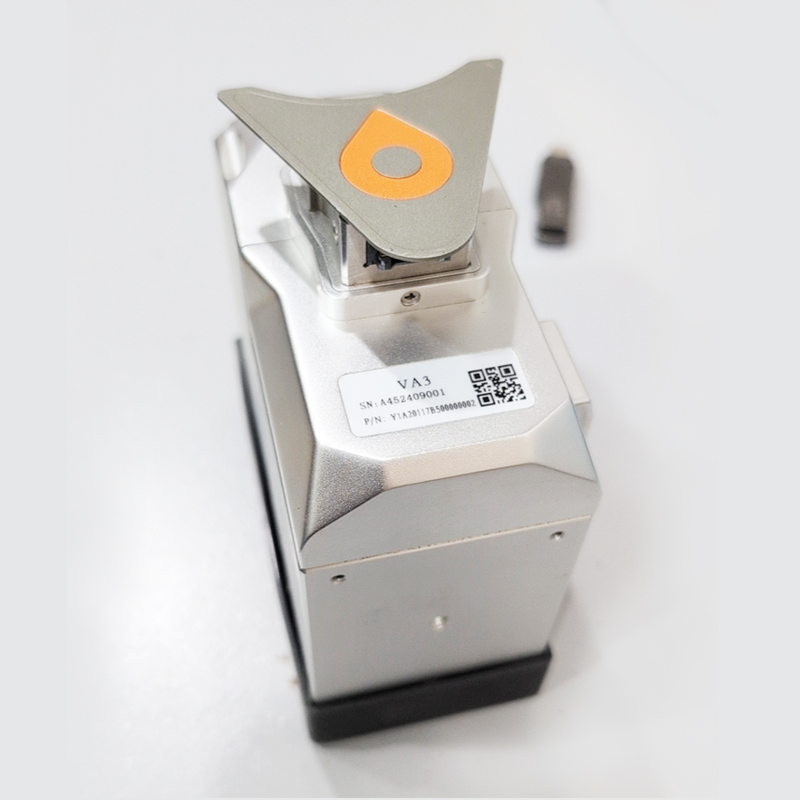

VA3 Pocket UAV Lidar System
The GEOMATE VA3 is very likely the best UAV LiDAR solution with integrated Livox Avia. The VA3 is a major breakthrough in the democratization of mobile mapping technology, allowing its use by non-professional users in the geospatial reality capture industry and to those who have never been able to access such technology before. The VA3 is the first generation of GEOMATE LiDAR solutions, which are widely used for power line inspection, topographic mapping, emergency response, agricultural and forestry surveys, and more. This all-in-one, lightweight
and rugged system integrates a high-performance laser scanner with an industrial-grade professional 26 MP camera and a high-precision inertial navigation system for quality data collection.
Technical Specification
- Laser Scanner: Integrated Livox Avia
- Weight: 0.95 kg (including integrated camera)
- Dimensions: 12.8 × 14.0 × 6.80 cm (5.04″ × 5.51″ × 2.65″)
- Point Density: 570 pts/m² at 50 m AGL (5 m/s speed); 280 pts/m² at 100 m AGL
- Coverage: Up to 2 km² in a 30-minute UAV flight
- Absolute Accuracy: <10 cm horizontal, <5 cm vertical (without control points at 50 m AGL flight altitude)
- GNSS System: Dual-frequency GNSS (GPS, GLONASS, BeiDou, Galileo), 5 Hz sampling
- IMU Update Rate: 600 Hz
- Position Accuracy (No GNSS Outage): 0.010 m RMS horizontal, 0.020 m RMS vertical
- Attitude Accuracy: 0.01° RMS pitch/roll, 0.04° RMS heading
- Camera Type: Built-in calibrated industrial-grade camera
- Resolution / Effective Pixels: 6252 × 4168 (26 MP)
- Min. Trigger Interval: 0.8 seconds
- Data Storage: 256 GB internal storage
- Interface Ports: Skyport interface, 1× GNSS antenna port, 1× USB Type-C (up to 160 Mb/s copy speed)

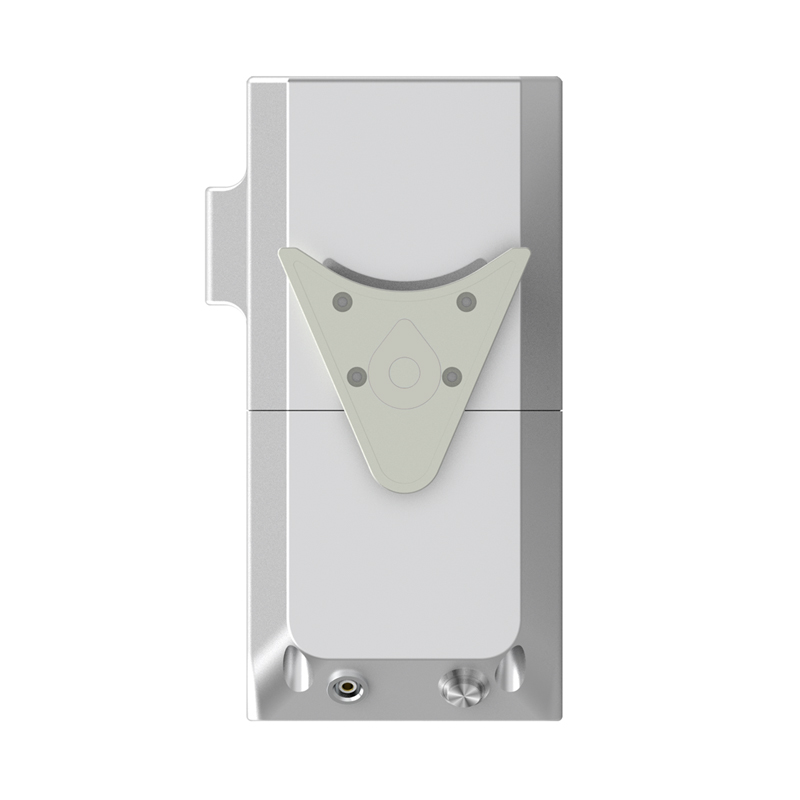

- Mounting Options: Skyport for DJI M300, plus external power port for other UAV setups
- Input Voltage / Power: DC 12 ~ 28 V, 32 W (min. 2A)
- Operating Temperature: -20°C to +50°C
- Ingress Protection: IP54 rating
