Portable Electronic Axle Load Scales

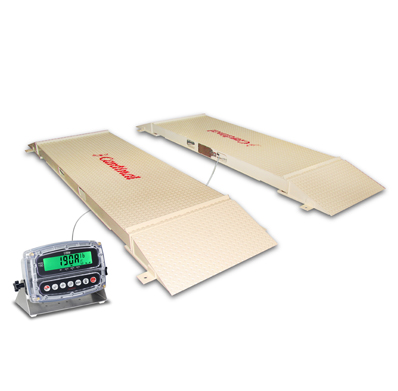

Cardinal’s completely portable 760PS/PA axle scale is a 7 x 2.5-foot (without ramps) two-module axle load scale that gives you the performance you need… where you need it and when you need it. At only 400 lbs per (aluminum) platform, this relatively lightweight scale handles like a heavyweight with a 60,000 lb capacity. Each scale comes complete with four steel or aluminum access ramps, checkered deck, stainless steel junction box, and environmentally-protected stainless steel load cells (4 SB20000S load cells per platform).
Features
- 30-ton Capacity
- Low-Profile and Portable
- Stainless Steel Load Cells
- Steel or Aluminum Platforms
- Comes with Access Ramps
Specifications
- Weighbridge: 7 ft L x 30 in W x 5 1/2 in H with ramp: 10 ft L x 30 in W x 5 1/2 in H
- Platform Capacity: 30,000 lbs
- Axle Capacity: 60,000 lbs (tandem platforms)
- Graduations (portable installations): 60,000 lb x 50 lb
- Graduations (permanent installations): 60,000 lb x 20 lb
- Platform Construction: steel (PS); aluminum (PA)
- Paint: Baked-on epoxyde cross-linked polyester anti-corrosion tan powder paint
