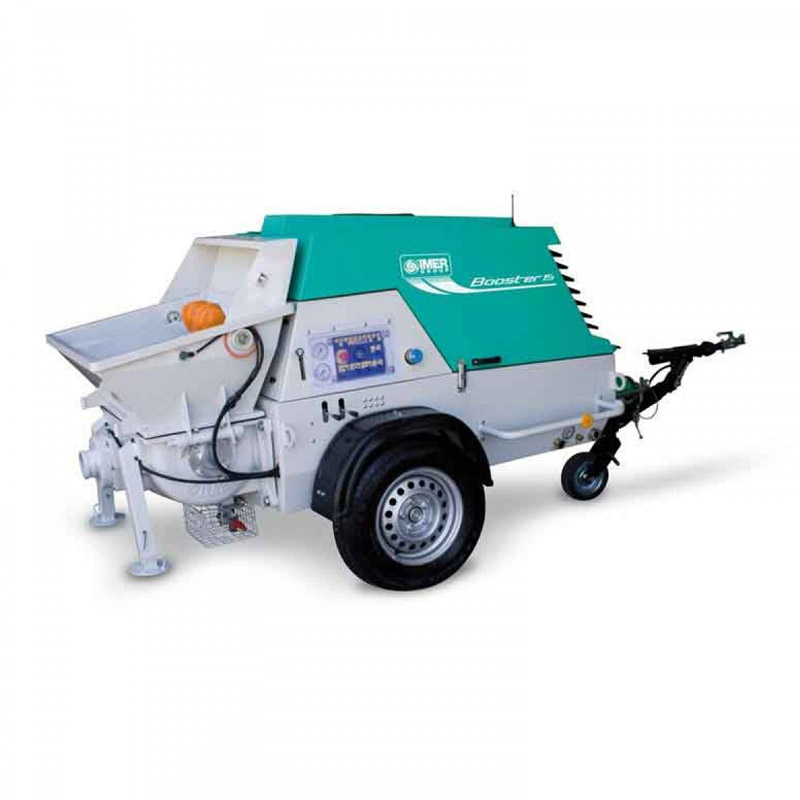

Booster 15

2-cylinder piston pump, hydraulic driven. Diesel engine. Ideal for pumping concrete and self levelling floor screeds and for shotcreting.

STANDARD EQUIPMENT

• Liquid cooled Diesel engine – 21.2 kW
• Concrete hopper with agitator
• Grid with 12V vibrator
• Hydraulic system with reversing
• Pumping unit with S-tilting valve for automatic compensation of clearance and wear
• 4″ Victaulic delivery manifold (. 100 mm)
• Control panel with electromechanical controls
• Four-function remote control via cable
• Pumping piston replacement kit
• Drawbar for non-towable version
• Road-towable drawbar, parking brake and light units (road-towable version)
• Accessory box
• Grease pump

CONFIGURATIONS

Kit for Concrete Pumping Cod. 1106123

• 7 steel pipe dn 4″ l=3 mt for Victaulic
• 1 Rubber hose 4″ l.3 mt 4″ Victaulic-free
• 2 Steel bend dn 4″ r=250/90° for Victaulic
• 2 steel bend dn 4″ r=250/45° for Victaulic
• 12 Victaulic coupling dn 4″
• 15 gasket for Victaulic coupling dn 4″
• 2 cleaning ball for hose diam. 150/200
• 1 basket for cleaning ball recovery dn 4″
• 1 90°bend with ball inlet port
• 1 bend top ø 100 Victaulic

Kit for Shotcreting SPRITZBETON Cod. 1106124

• 2 rubber hose diam. 50 l.10 mt Victaulic 2″ – Victaulic 2″
• 1 rubber hose diam. 50 l.10 mt Victaulic 2″ – cam dn 50
• 1 complete hopper grid 15 mm mesh
• 1 spritz beton gun dn 50 with fast Geka coupling 3/4″ for air
• 1 reduction cone dn 100(4″)-dn 50 (2″) Victaulic l=1000mm
• 1 hanging belt for hose
• 2 cleaning ball for hose diam.50
• 1 Victaulic coupling dn 4″
• 2 gasket for Victaulic coupling dn 4″
• 3 Victaulic coupling dn 2″
• 6 gasket for Victaulic coupling dn 2″
• 1 gasket for cam coupling dn 50

Kit for Fast Setting Additive Cod. 1107172

• Pumping Unit (hydraulic motor and screw pump with 3/4″ manifold)
• 4 m hose for connection to additive tank
• Spray gun for shotcreting ID 50 complete with cam coupling, 3/4″
• Geka coupling and connector for additive
• Control panel with manual/automatic additive flow adjustment (proportional to concrete output)

APPLICATIONS

For pumping concrete and self levelling floor screeds and for shotcreting.
