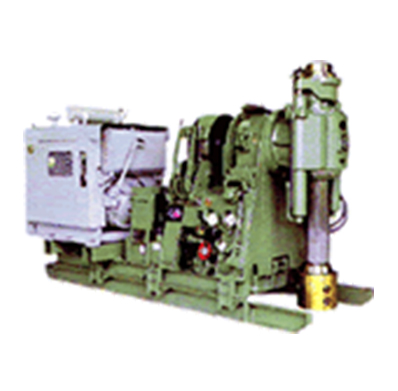

YBM-6 Boring Machine
The YBM-6 is a robust, versatile hydraulic boring machine intended for demanding drilling applications such as foundation investigation, soil and rock exploration, landslide prevention, water-well drilling, and mineral exploration. Its six forward and two reverse rotation speeds allow the machine to be configured for different drilling conditions.
Key Features
- Heavy-duty construction for demanding drilling applications
- Inspection drilling: up to 600 m
- Well drilling: maximum approximately 500 m
- Hydraulic sliding/retraction device
- 6 forward and 2 reverse rotation speeds
- Designed for soil and core drilling
- Available with wireline core drilling equipment as an option
- Suitable for foundation, geological and water-well applications
Technical Specifications
Specification YBM-6 Model YBM-6 Type Heavy-duty boring / drilling machine Inspection drilling capacity Up to 600 m Well drilling capacity Up to 500 m Rotation speeds 6 Forward / 2 Reverse Spindle options 105 mm hexagonal / 155 mm octagonal Hydraulic system Hydraulic sliding/retraction skid Applications Soil investigation, core drilling, foundation, water wells, mineral exploration Optional equipment Wireline hoist, cathead, high-speed gears, hydraulic rod breakout, double-screw chuck Prime mover Electric motor or engine configuration The catalog specifies the 105 mm spindle as the preferred option for deeper drilling, while the 155 mm spindle is intended for larger-diameter drilling.
